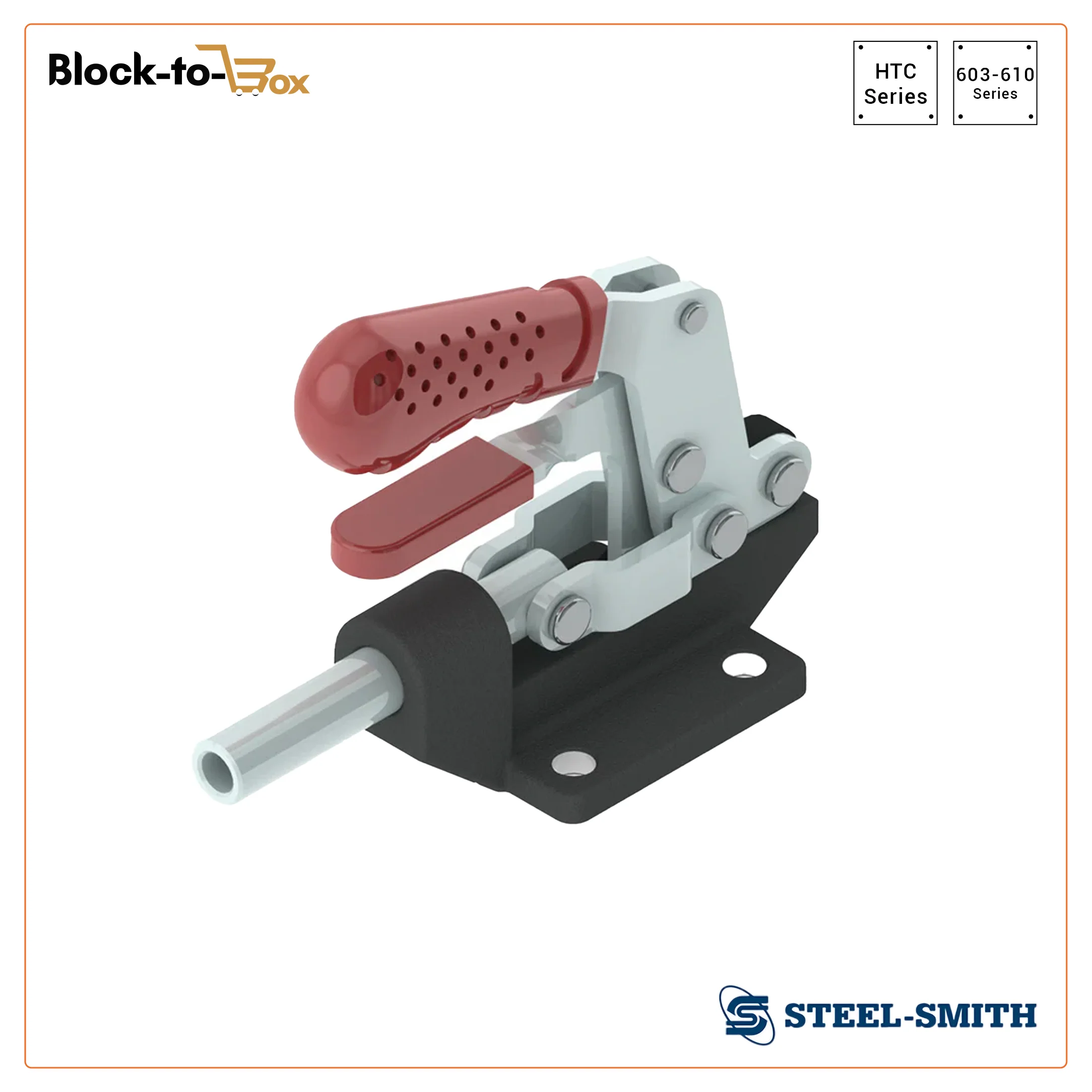

Steelsmith Package Size Straight Line Action Clamps
Straight Line Action (HTC-Series):
The straight line action toggle clamps design uses a straight-line or push/pull, Toggle clamping action. The push/pull handle is easy to operate & moves the plungers of the clamp in and out along its axis. Most of these clamps can be locked in two positions, allowing you to use them as either push or pull clamps. These clamps are manufactured in a variety of models to accommodate a wide range of load rating.(45 kgs- 4,500 kgs)
- TheSF Serieshave solid hold down bar which has a fixed guide bush at its end for the spindle assembly.
- TheSBSerieshave a "U" bar arm which the bolt retainer can be welded at any desired angle.
- TheUBSerieshave a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.
Original: $4.41
-65%$4.41
$1.54
Description
Straight Line Action (HTC-Series):
The straight line action toggle clamps design uses a straight-line or push/pull, Toggle clamping action. The push/pull handle is easy to operate & moves the plungers of the clamp in and out along its axis. Most of these clamps can be locked in two positions, allowing you to use them as either push or pull clamps. These clamps are manufactured in a variety of models to accommodate a wide range of load rating.(45 kgs- 4,500 kgs)
- TheSF Serieshave solid hold down bar which has a fixed guide bush at its end for the spindle assembly.
- TheSBSerieshave a "U" bar arm which the bolt retainer can be welded at any desired angle.
- TheUBSerieshave a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.
