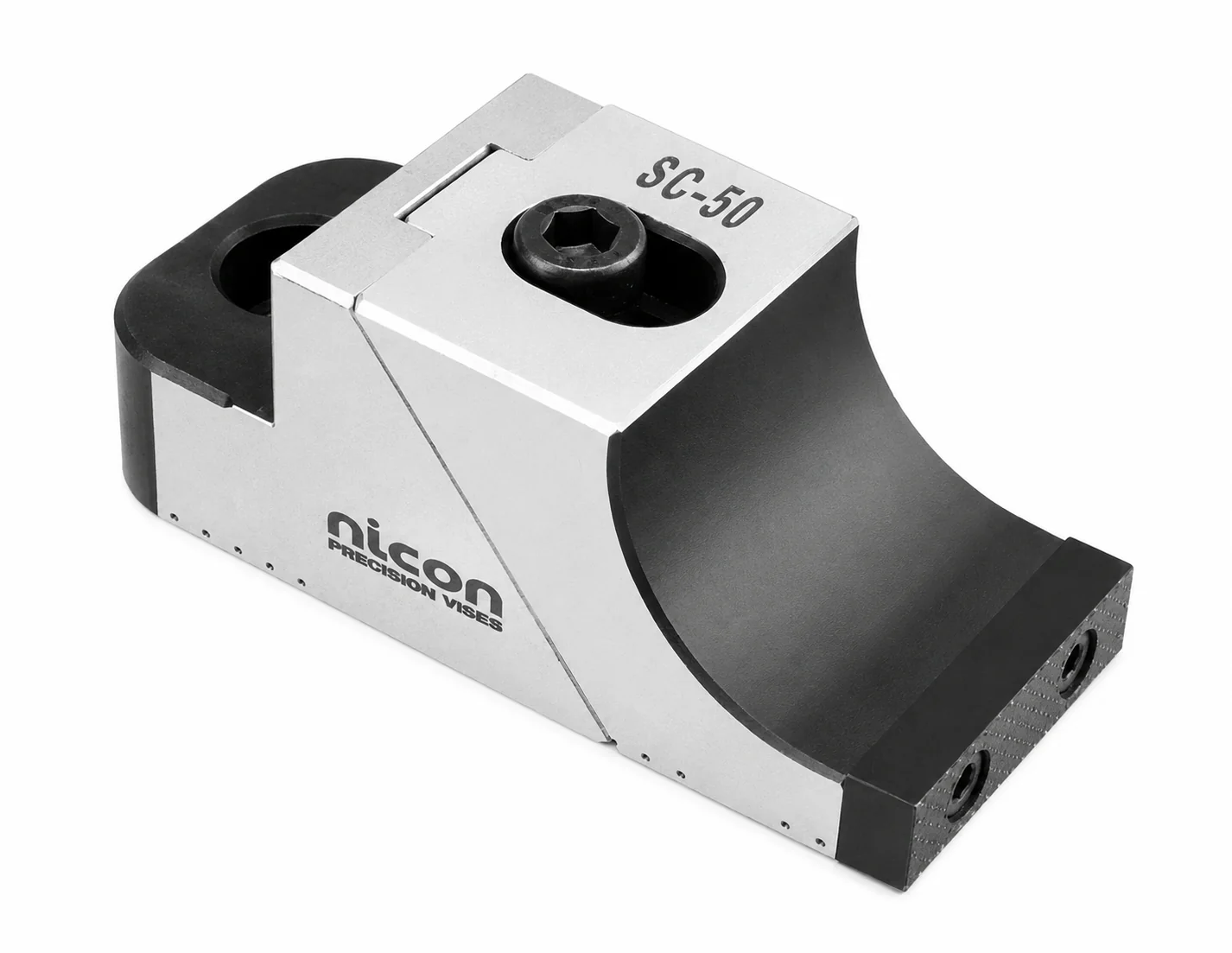

Nicon Low Profile Side Clamp - N-402
The Nicon Low Profile Side Clamp is a compact and efficient work holding solution designed to securely clamp workpieces from the side, leaving the top surface completely accessible for machining operations. Its low-profile design makes it ideal for CNC milling, grinding, drilling, and precision machining applications where unobstructed access is essential.
Manufactured from high-quality alloy steel and hardened to HRC 55 ±2, the clamp offers excellent strength, wear resistance, and long service life. The integrated dovetail clamping mechanism provides a strong lateral clamping force while preventing workpiece lift during machining, ensuring maximum stability and accuracy.

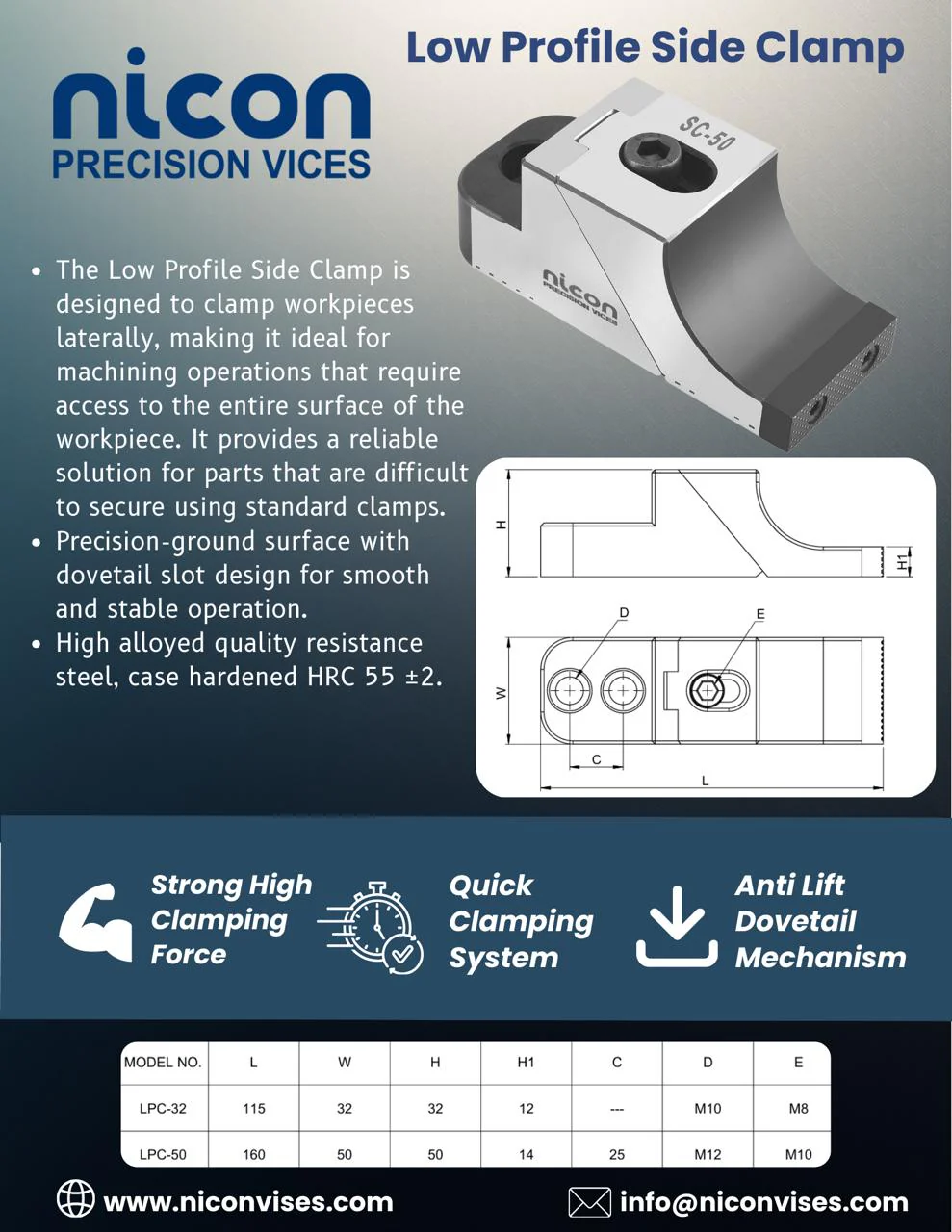

Technical Specifications
| Model | Length (L) | Width (W) | Height (H) | H1 | C | D Thread | E Thread |
|---|---|---|---|---|---|---|---|
| LPC-32 | 115 mm | 32 mm | 32 mm | 12 mm | — | M10 | M8 |
| LPC-50 | 160 mm | 50 mm | 50 mm | 14 mm | 25 mm | M12 | M10 |
Key Features
- Side Clamping Design – Holds the workpiece laterally, keeping the entire top surface free for machining.
- Low Profile Construction – Ideal for applications with limited space and multi-part setups.
- High Clamping Force – Delivers secure holding power for reliable machining performance.
- Anti-Lift Dovetail Mechanism – Minimizes workpiece movement and prevents lifting under cutting forces.
- Precision Ground Surfaces – Ensures accurate positioning and repeatable results.
- Quick Setup and Operation – Simple clamping system reduces setup time and improves productivity.
- Durable Alloy Steel Body – Case hardened to HRC 55 ±2 for superior wear resistance and extended service life.
Applications
- CNC Milling Machines
- Vertical and Horizontal Machining Centers
- Precision Grinding Operations
- Drilling and Tapping Fixtures
- Multi-Part and High-Density Workholding Setups
- Manufacturing of Precision Components
