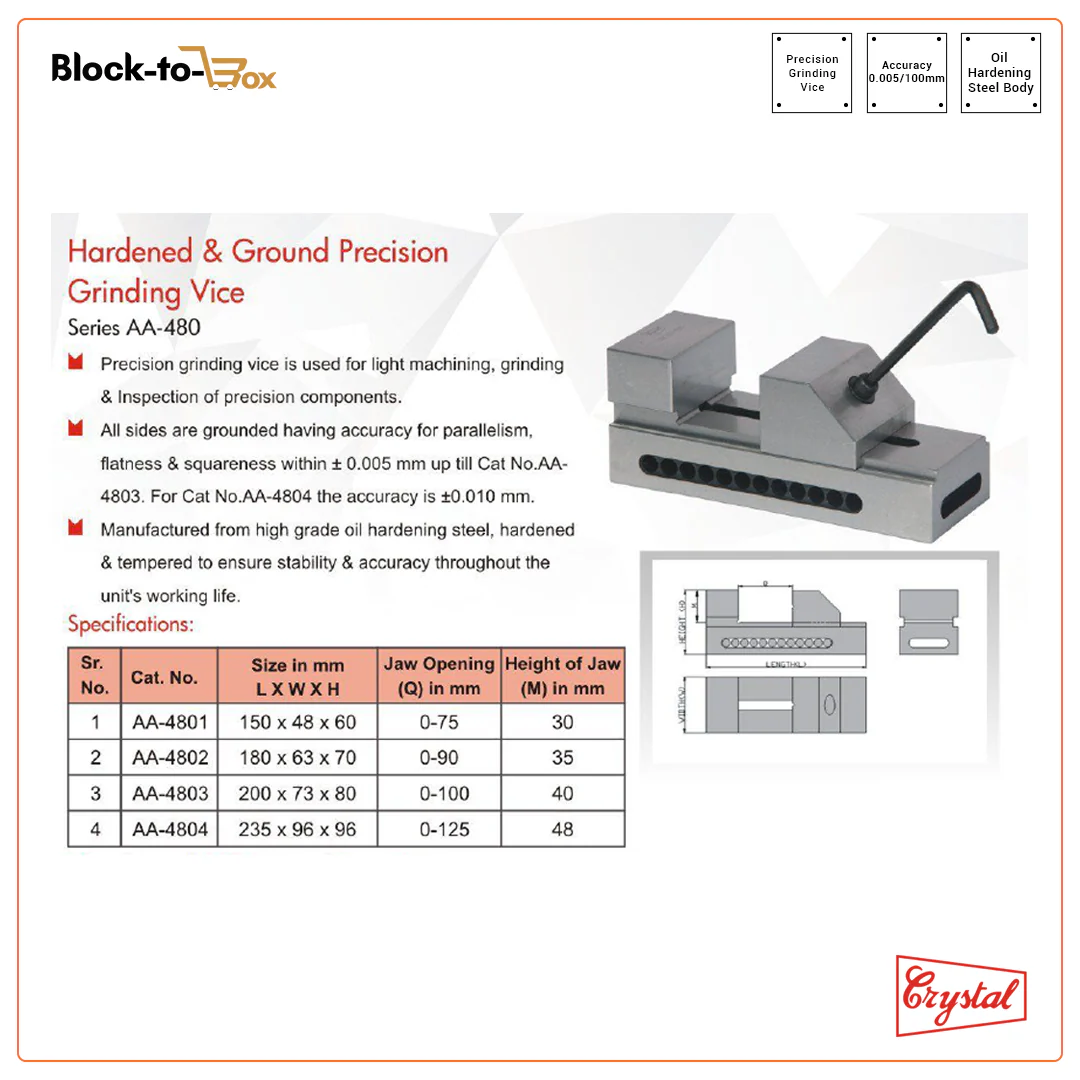

Crystal Hardened & Ground Precision Grinding Vice
Features:
- For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
- Vice can be used, standing on its base, sides, end or top.
- Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
- Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life.
Specification:
| Cat No. | Overall Size ( LXWXH ) | Jaw Opening (Q) | Height of Jaw(M) |
| AA-4801 | 150X48X60 mm | 0-75 mm | 30 mm |
| AA-4802 | 180X63X70 mm | 0-90 mm | 35 mm |
| AA-4803 | 200X73X80 mm | 0-100 mm | 40 mm |
| AA-4804 | 235X96X96 mm | 0-125 mm | 48 mm |
Select Size
From $22.20
Original: $63.43
-65%Crystal Hardened & Ground Precision Grinding Vice—
$63.43
$22.20
Description
Features:
- For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
- Vice can be used, standing on its base, sides, end or top.
- Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
- Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life.
Specification:
| Cat No. | Overall Size ( LXWXH ) | Jaw Opening (Q) | Height of Jaw(M) |
| AA-4801 | 150X48X60 mm | 0-75 mm | 30 mm |
| AA-4802 | 180X63X70 mm | 0-90 mm | 35 mm |
| AA-4803 | 200X73X80 mm | 0-100 mm | 40 mm |
| AA-4804 | 235X96X96 mm | 0-125 mm | 48 mm |
